VF Engineering 2009-2014 Lamborghini Gallardo VF760 Supercharger System

VF Engineering 2009-2014 Lamborghini Gallardo VF760 Supercharger System

Gallardo VF760 Supercharger System $20,995

Custom Painted Finish $3,000 (Matte Black default)

Balance must be paid by Wire Transfer

Factory Power: 560HP / 400TQ

Supercharged: 760HP / 600TQ

Built in the USA!

Designation: Lamborghini Gallardo 5.2L V10
Standard Output:  560 HP | 400 TQ
Power Gains:  760 HP  |  600 TQ

Details:

• Direct Bolt-On
• Pump Gas 91 Octane
• Tuned With Factory ECU
• Routine Maintenance Schedule
• Installation Required
• Fully Reversible

Fitment:

• LP550-2    VFK-LA-0400-01 (2009 – 2014)
• LP560-4    VFK-LA-0400-02 (2009 – 2014)
• LP570-4    VFK-LA-0400-03 (2009 – 2014)
• LP570-4 SL    VFK-LA-0400-04 (2009 – 2014)
• LP570-4 Squadra Corse   VFK-LA-0400-05 (2013 – 2014)

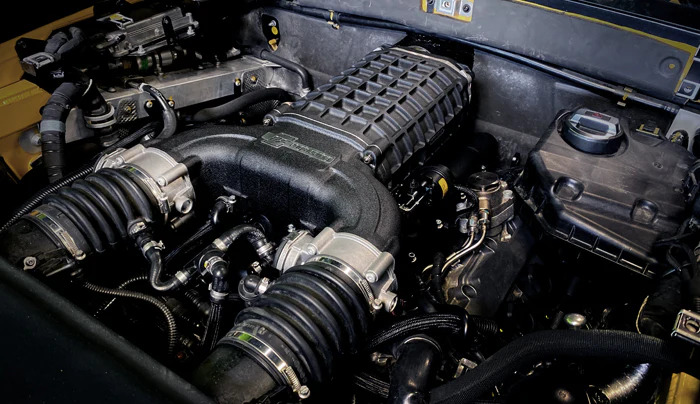

The VF760 Gallardo supercharger system, is a bolt on roots supercharger system which adds 200hp and 200lbs of torque to the 5.2L V10 Gallardo (FSI engine). Compatible for all Lamborghini Gallardo models 2009-14 worldwide. The system utilizes Magnuson TVS2300 EATON style roots blower with an air to water after cooling system, for optimal intake air temperatures under daily and performance driving conditions.

Induction

The 6th generation Magnuson TVS2300 is a roots style blower using Eaton’s latest generation four-lobe rotors. The supercharger is affixed to a water cooled cast manifold with additional cooling efficiency provided by the independent water reservoir and heat exchangers unrelated to the engine. Boost pressures are immediate and consistent across the entire rev range, and controlled by an internal air bypass system designed to virtually eliminate parasitic loss at cruising speeds.

Standard Finish: BLACK

Custom colors (as pictured) are available as a $3,000 option.

Fueling

Designed and developed in the California, the fuel maps are optimized for 91 octane pump gas. Those with access to higher unleaded octane (93-100oct) can use it and take advantage of the improved fuel quality.

Transmission

Our system is compatible with the Automatic or Manual transmission, utilizing the stock clutch and basket.

Exhaust

Compatible with a stock exhaust, and most cat-back exhaust systems.

Pre-Installation Recommendations

Repair or replace warn sensors

Perform a carbon cleaning
