CTS Turbo Front Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 with ARP Bolts

Description

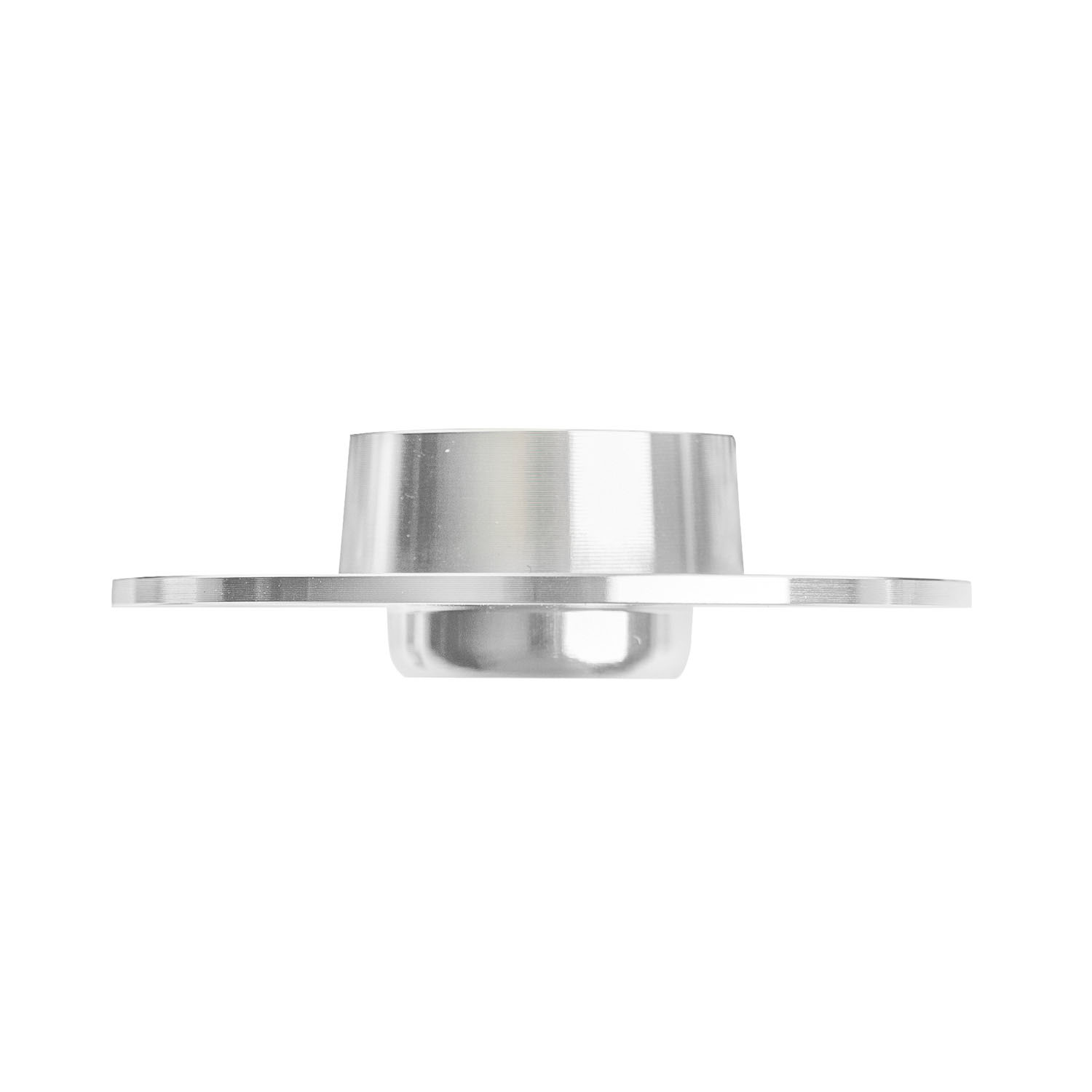

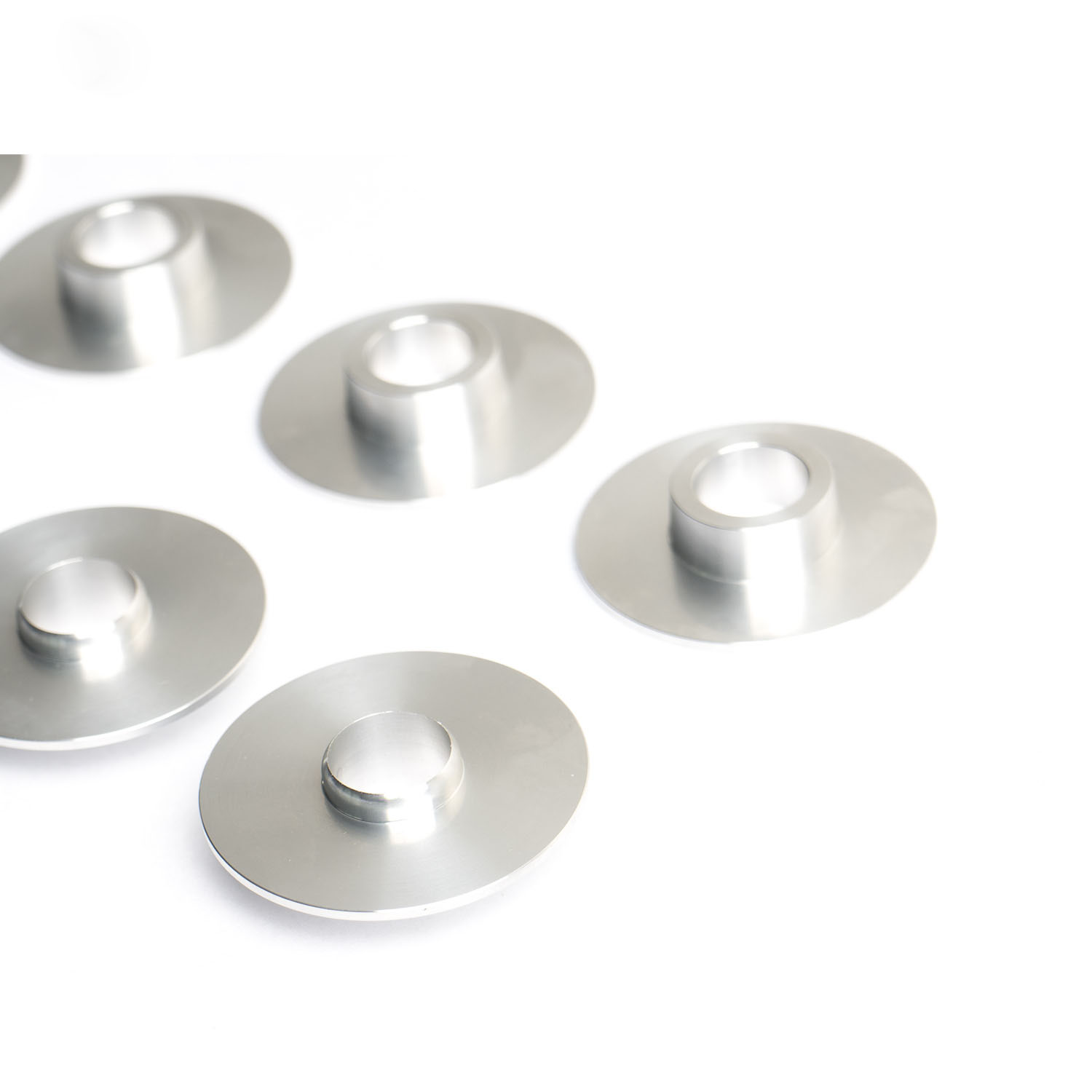

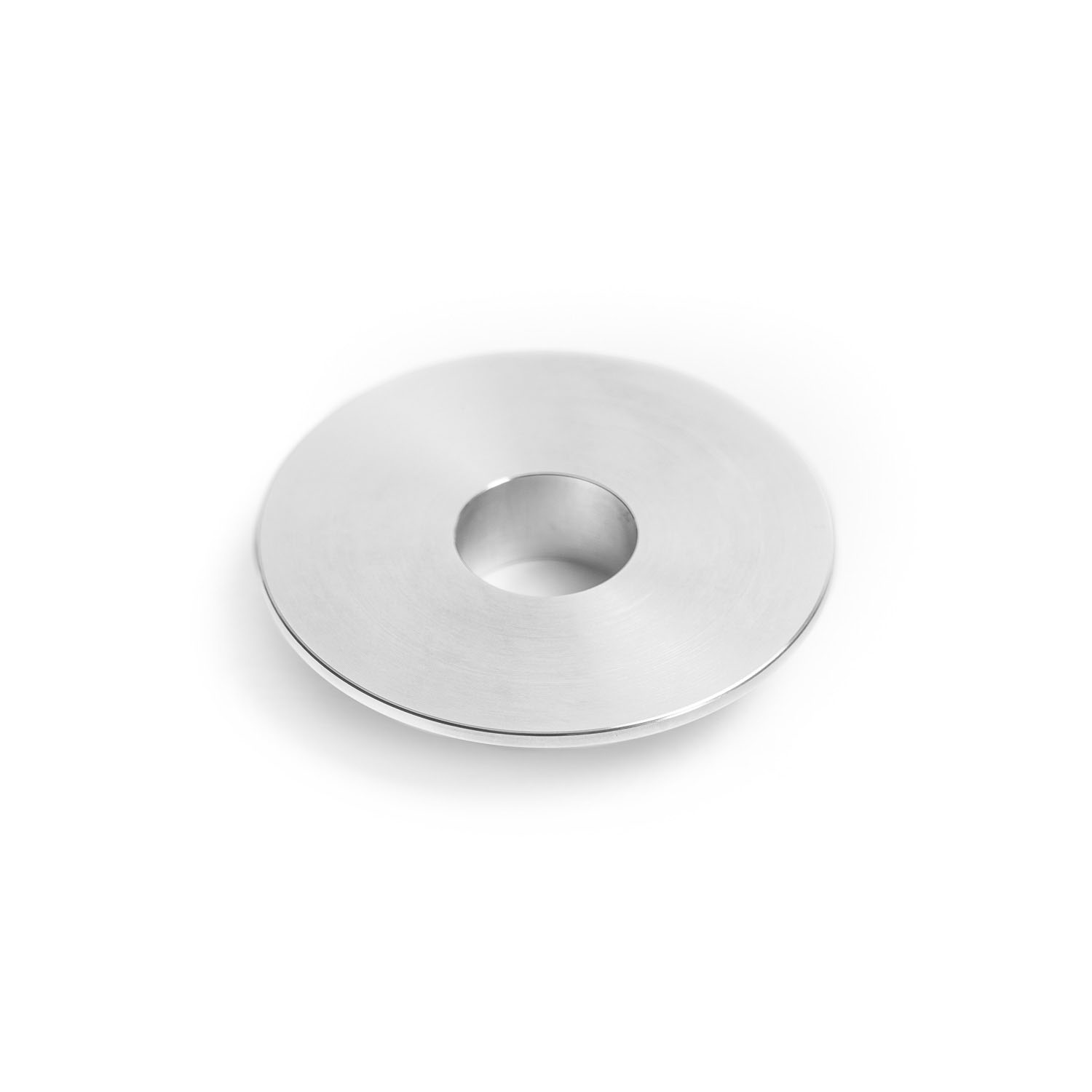

• Interlocking subframe shims center the front subframe to the body
• Machined in house from T6061 Billet aluminum
• OE replacement stretch bolts (4) and upgraded ARP bolts (2)
• Eliminates subframe clunks and shifting

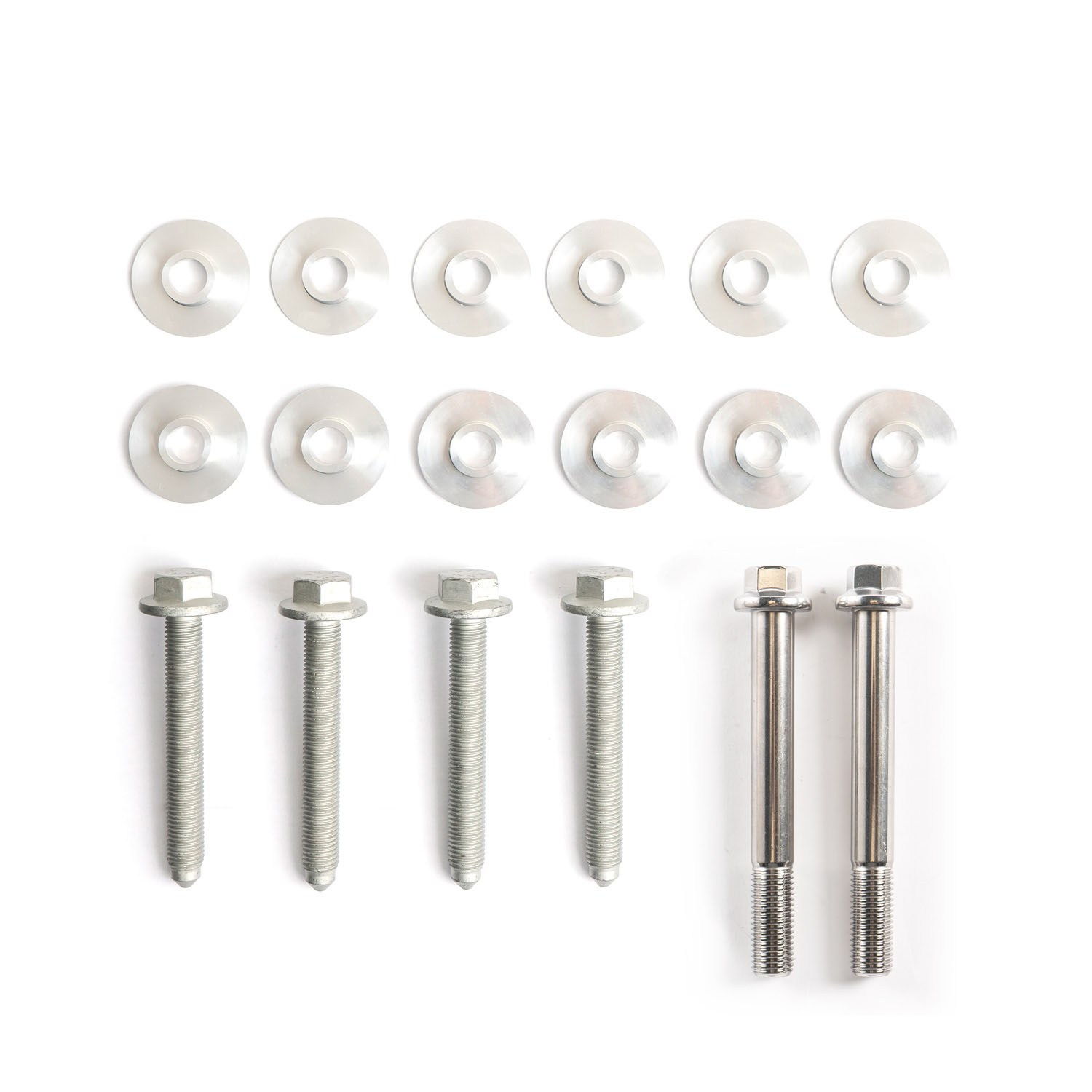

• 6 x Upper Insert
• 6 x Lower Insert
• 4 x Short OE Bolts

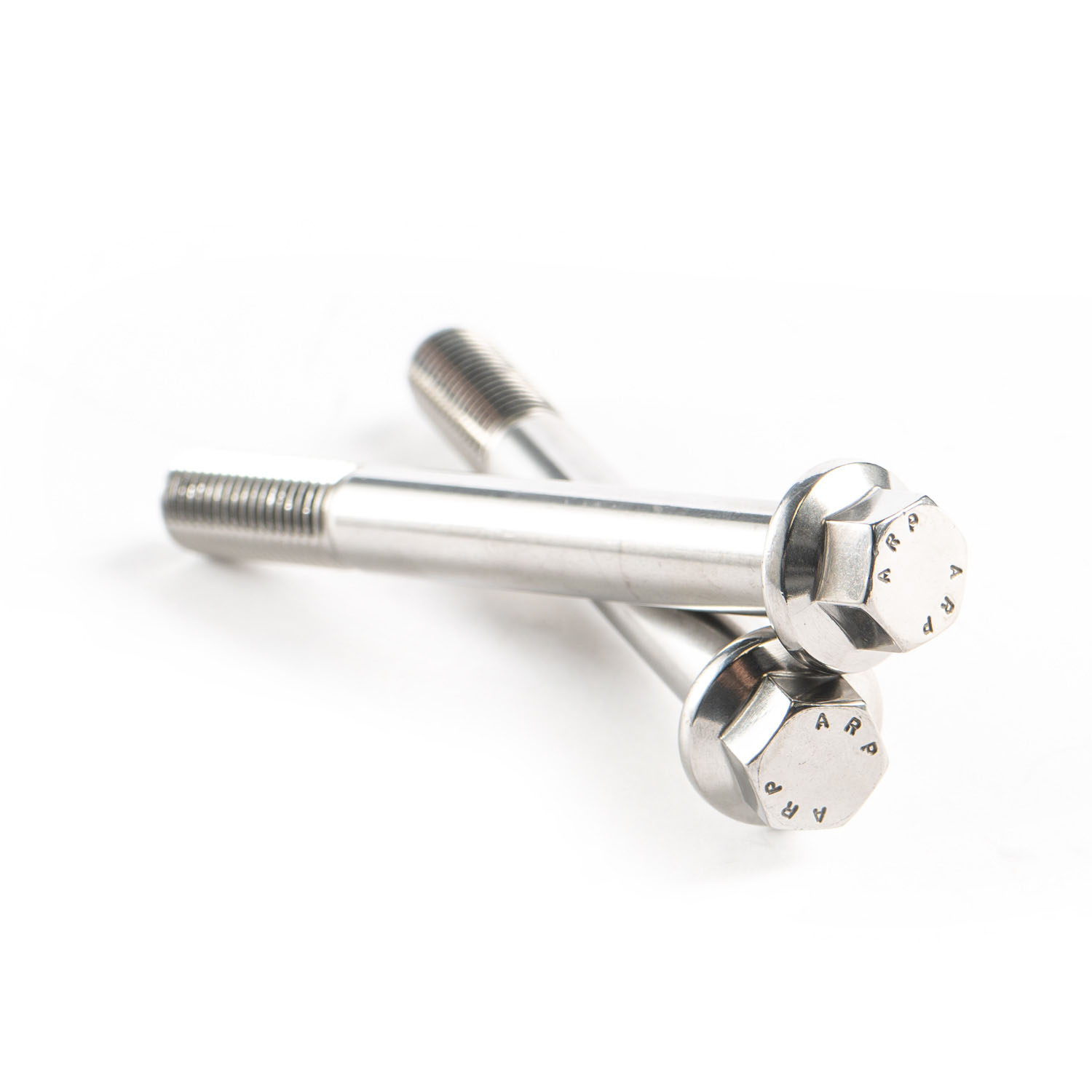

• 2 x  ARP Long Bolts

Torque specs:

• ARP bolts = 85Nm (can be re-used)
• 18mm bolts = 70Nm+180deg (do not re-use)
• 16mm bolts = 50Nm + 90deg (can be re-used once)
• 13mm bolts = 20Nm + 90deg (can be re-used once)

Fitment:

• MK5 GTI/GLI/R32/Jetta/Rabbit
• MK6 GTI/Golf R/Golf – Aluminum Subframe only, will not fit Jettas with steel subframe
• 8P Audi A3/S3
• B6 Passat/Passat CC

Note: wheel alignment required after installation.
