NEW! LIGHTWEIGHT G90 G99 BMW M5 Wheel Spacers for less rotating mass

Simple, bolt-on handling and looks for your BMW
Wider Stance = Better Handling & More Aggressive Looks

Introducing the all-new Lightweight G90 G99 BMW M5 Wheel Spacers by Burger Motorsports! Crafted for enthusiasts like you, these spacers are the ultimate upgrade for your G chassis BMW, designed to enhance both aesthetics and handling.

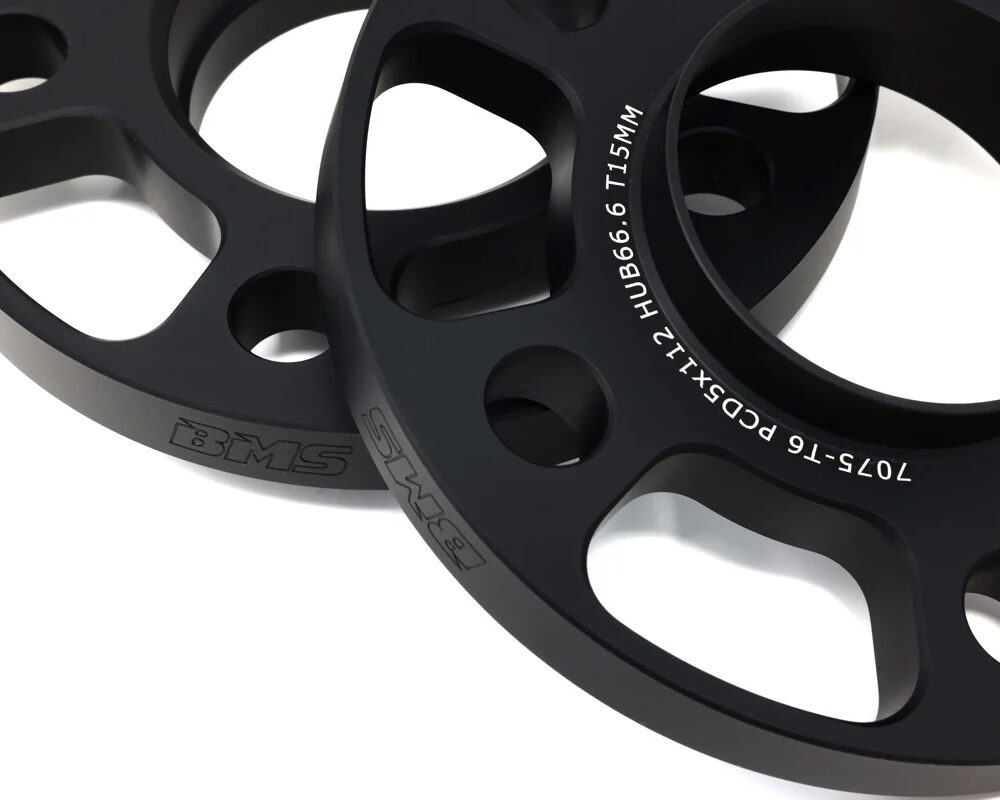

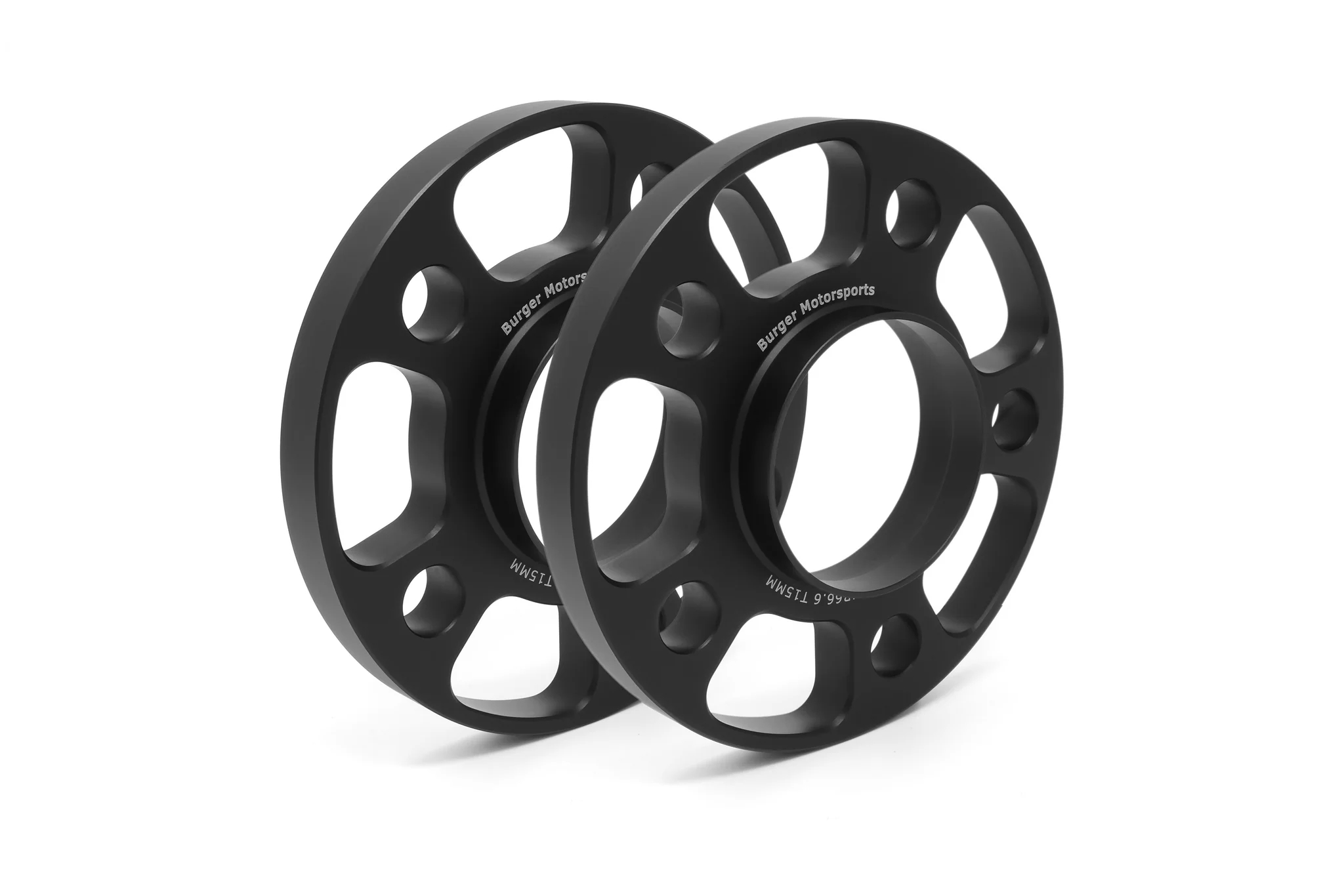

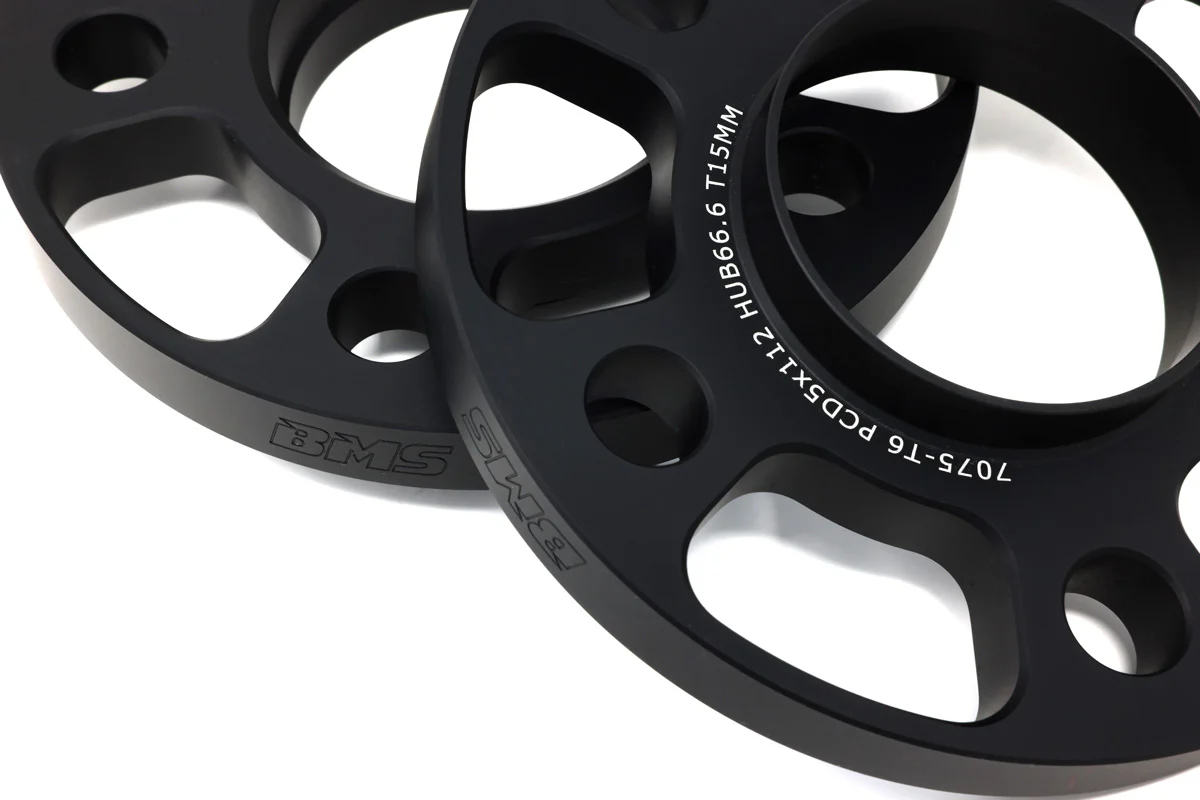

Build & Quality: Each Burger Motorsports wheel spacer is CNC machined from high grade 7075-T6 aluminum alloy and anodized black for protection. Our BMW Wheel Spacers are sold in pairs (2pcs) with 10 extended concentric swivel washer lug bolts that exceed OE standards. To do the whole car you will need 2 spacer kits. All Burger Motorsports wheel spacers are hub-centric and are safe to use on xDrive (all-wheel drive) BMW vehicles.

Hub-Centric: This means our spacer’s center bore matches your factory BMW hub and the factory-like hub on the Burger Motorsports spacers match the center bore in your wheel for a vibration-free fit.

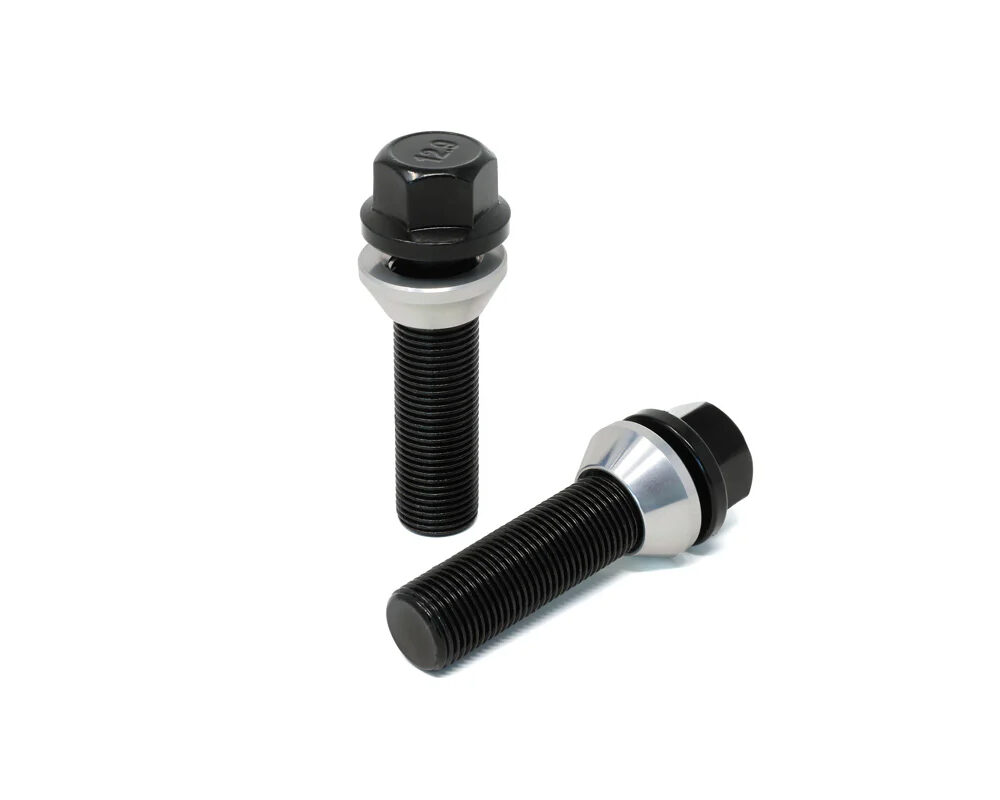

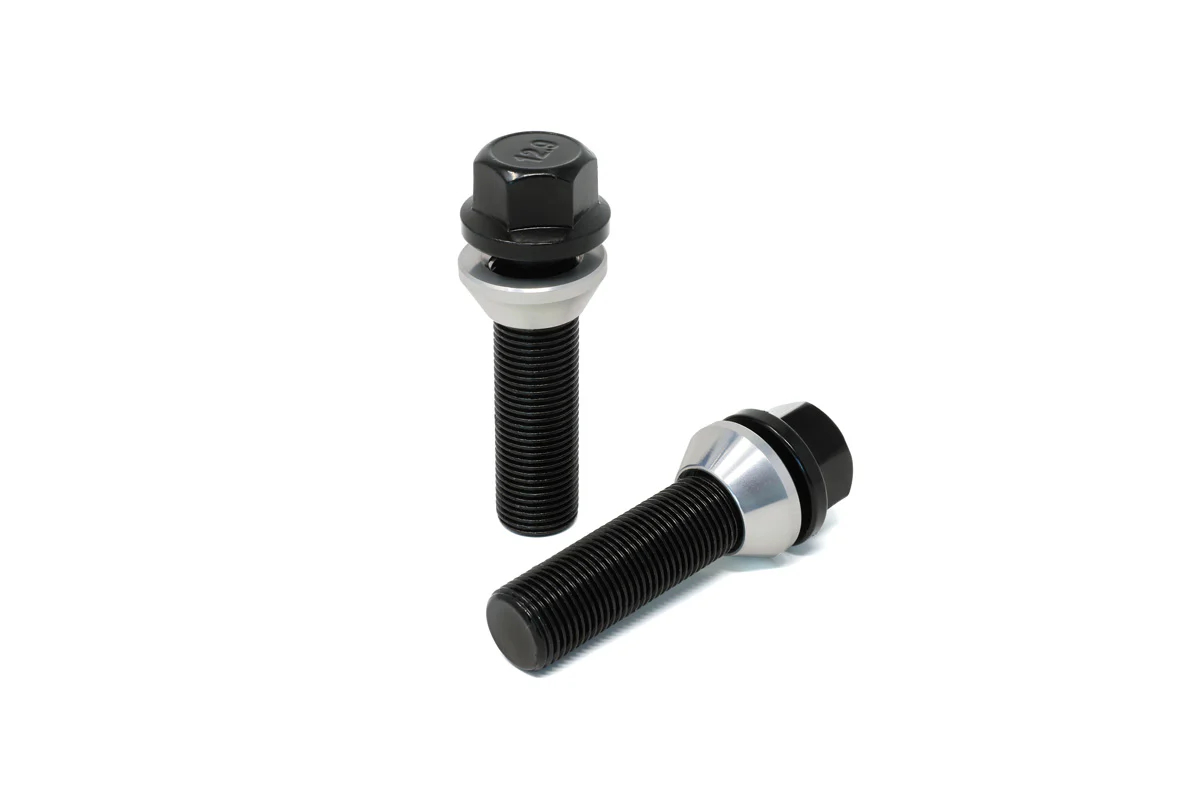

Concentric Floating Seat Lug Bolts: Each bolt is made from 12.9 Motorsport Grade steel for strength and safety and zinc plated for corrosion resistance. They contain a concentric floating seat washer to give the bolt a secure mating surface to torque to stay torqued and to reduce wheel seat chafing during installation and removal.

What width wheel spacer should I get?

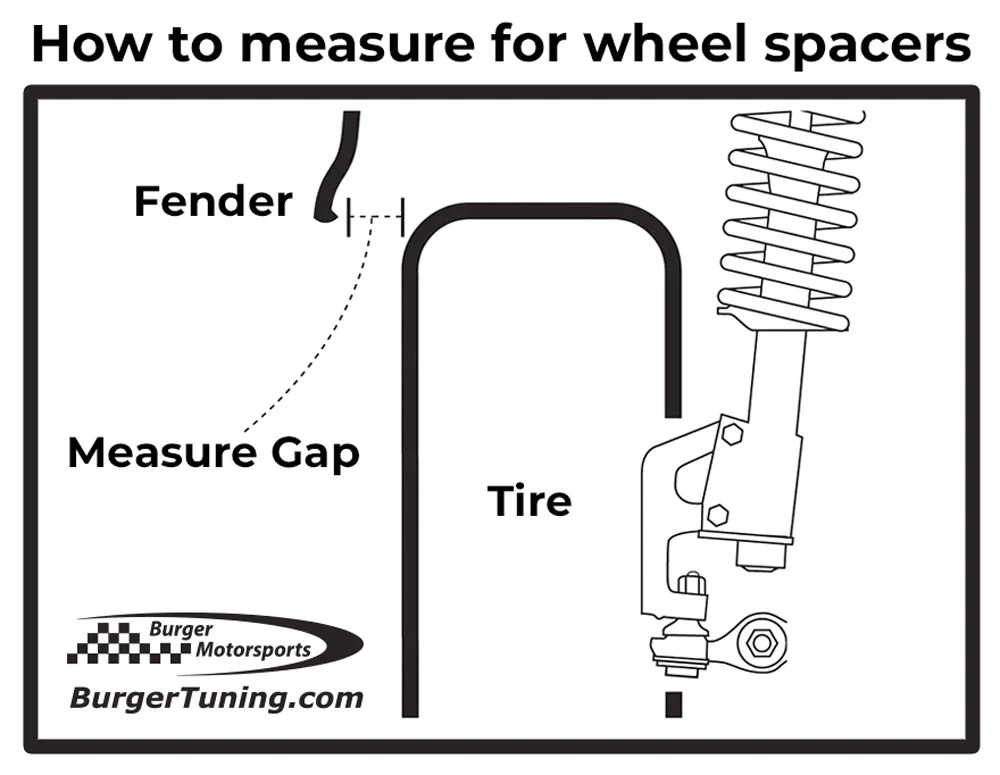

Most G90 G99 M5 BMW vehicles with factory wheels and tire sizes take 13mm in the front and 15mm in the rear. We recommend measuring before ordering.

The photos and guidelines on this website are for reference only. Your BMW might have different results with the same size spacers due to different wheels, tire sizes, packages, and offsets.

Installation: Simply remove the wheel, place the spacer on the hub and bolt the wheel back up with the supplied longer lug bolts. Download the install guide.

FREE Wheel Pin tool with purchase of 2 pairs of wheel spacers on the same receipt.

To get the free wheel pin with a 2 pair wheel spacer purchase, add 2 pairs of wheel spacers to your cart, go to the link below and add the free wheel pin to the cart. When you hit the checkout button the items will be discounted to FREE!

Click Here for the BMW Wheel Pin Tool ($10.00 Value)

Vehicle Fitment

BMW M5
• 2025+ S68 G90 BMW M5
• 2025+ S68 G99 BMW M5 Touring

G90 G99 BMW M5 Wheel Spacer Specifications
Bolt Thread Size: M14 x 1.25
Bolt Seat: Cone Seat / Concentric
Wheel Fasteners: Extended 10.9 grade zinc coated lug bolts
Spacer Material: Lightweight Anodized Black 7075-T6 Aluminum
Torque Specifications 105 ft-lbs (142 nm)

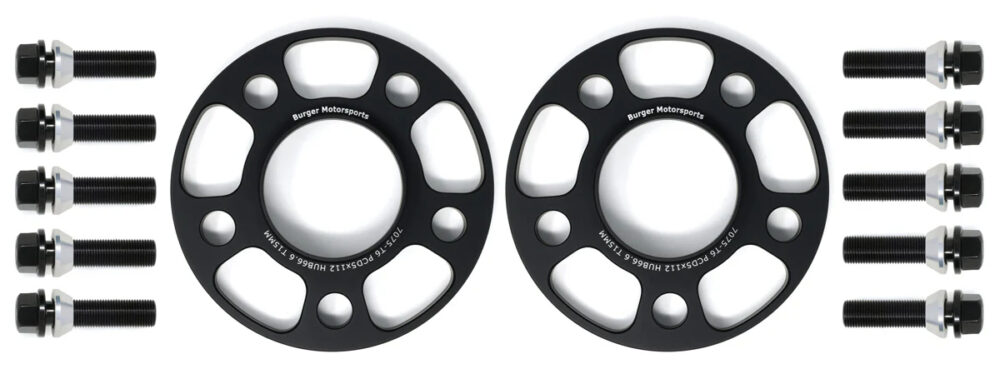

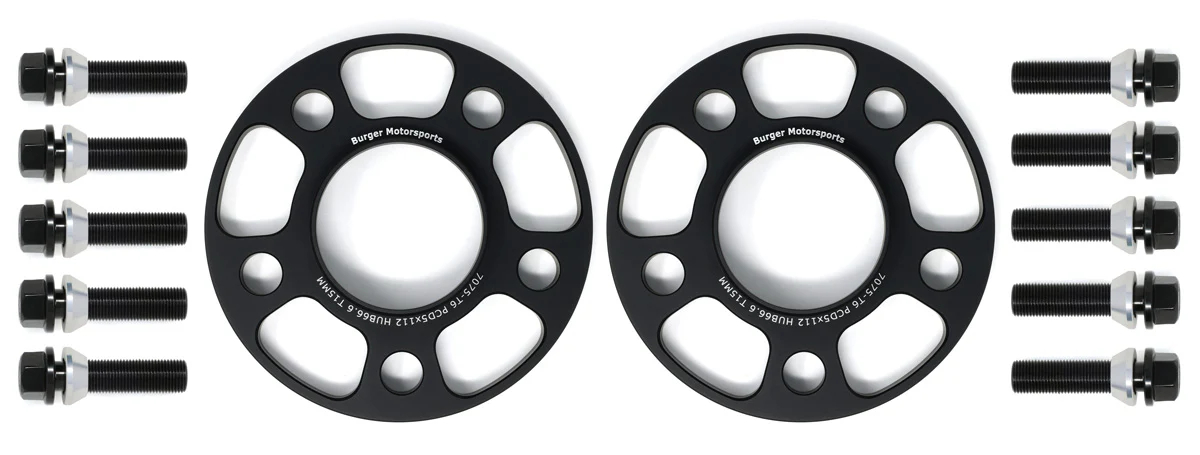

What’s included:
(2) Lightweight Racing Wheel spacers
(10) Extended 12.9 grade Concentric Swivel Washer Lug Bolts
(1) Packet of anti-seize

⚠️ Read instructions before installing. DO NOT mix up the included bolts. The bolts are the spacer width longer than the factory bolts. They are different lengths depending on spacer width.
