BMW Wheel Spacers

Simple, bolt-on handling and looks for your BMW
Wider Stance = Better Handling & More Aggressive Looks

BMW wheel spacers by Burger Motorsports are an excellent, cost-effective way to improve handling while dramatically enhancing the look of your BMW. Our wheel spacers push your rims and tires outward for an instant “fat” aggressive look, better lateral stability, and handling. Spacers are also great for filling in the wheel well, creating clearance for aftermarket suspension, different wheel offsets, big brakes, making your winter tires not look so inset, or just making your BMW look awesome. BMS spacers are specifically designed and manufactured by Burger Motorsports for your BMW ensuring a perfect vibration-free fit. Comes with a packet of anti-seize grease to place on the factory hub to aid in later removal.

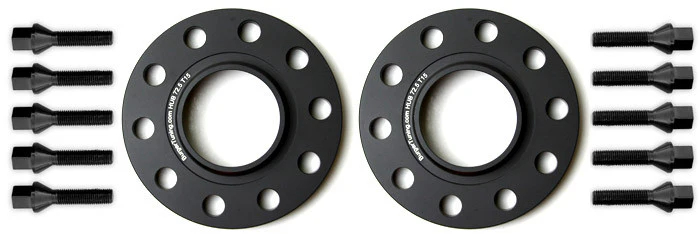

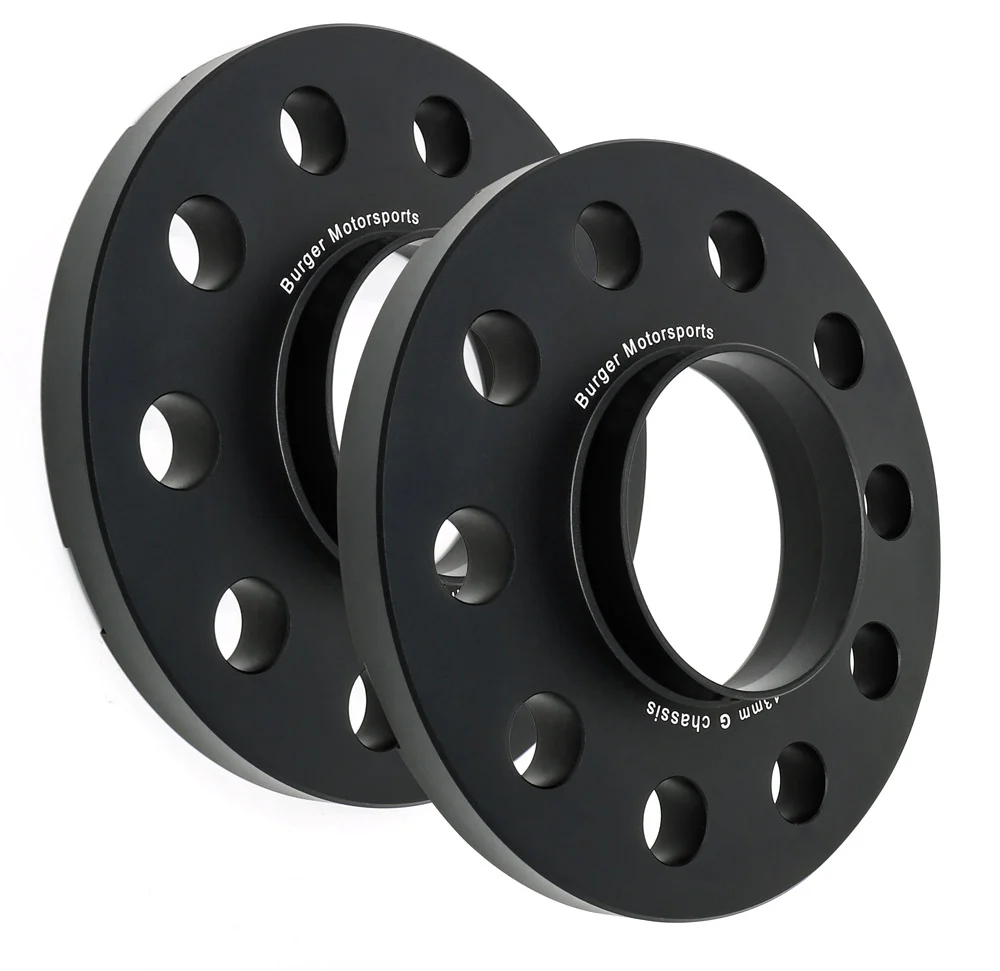

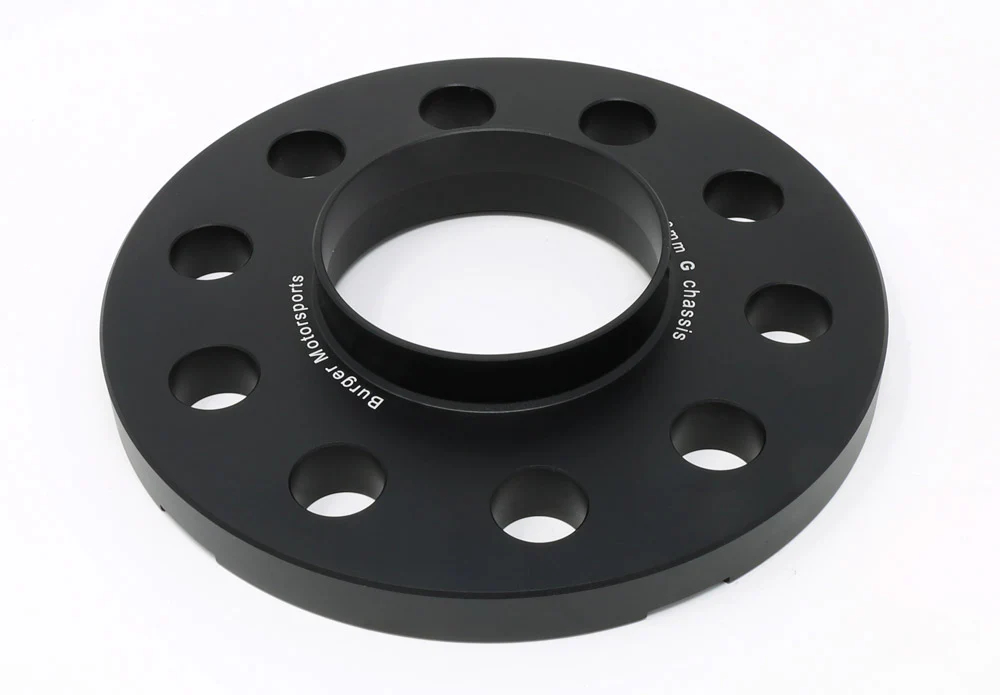

Build & Quality: Each Burger Motorsports wheel spacer is CNC machined from high grade 7075-T6 aluminum alloy and anodized black for protection. Our BMW Wheel Spacers are sold in pairs (2pcs) with 10 extended lug bolts that exceed OE standards. To do the whole car you will need 2 spacer kits. All Burger Motorsports wheel spacers are hub-centric and are safe to use on xDrive (all-wheel drive) BMW vehicles.

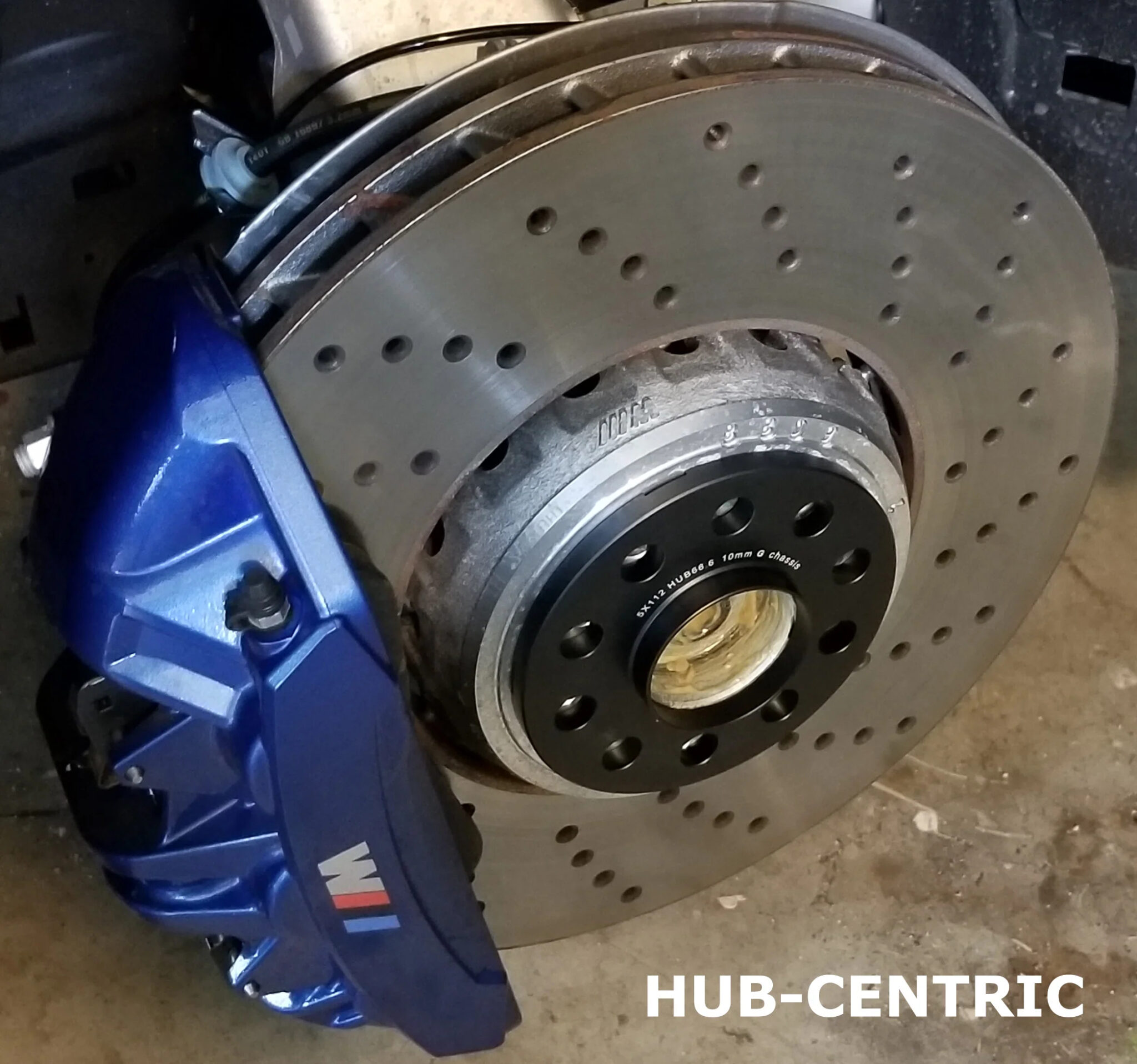

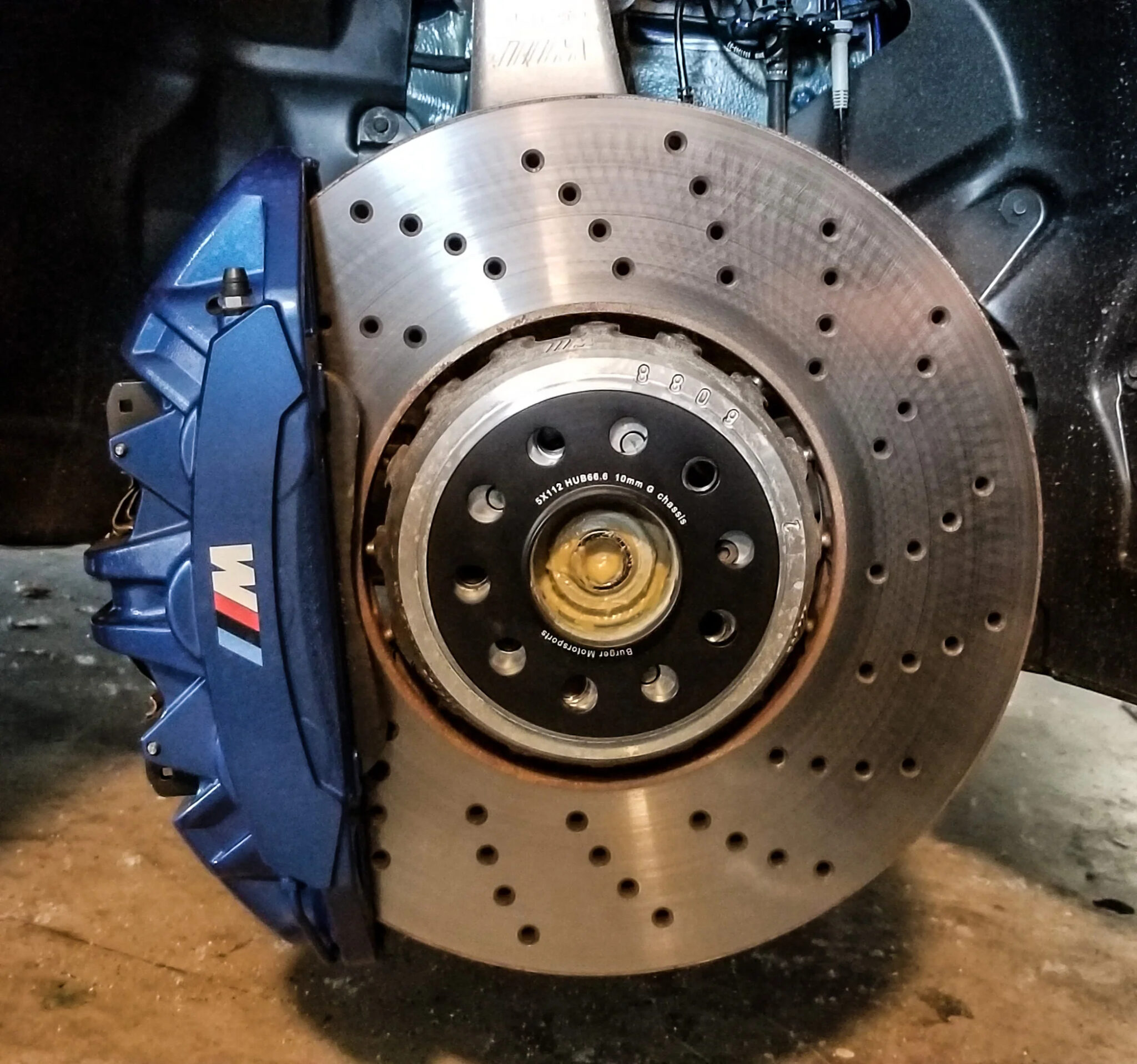

Hub-Centric: This means our spacer’s center bore matches your factory BMW hub and the factory-like hub on the Burger Motorsports spacers match the center bore in your wheel for a vibration-free fit.

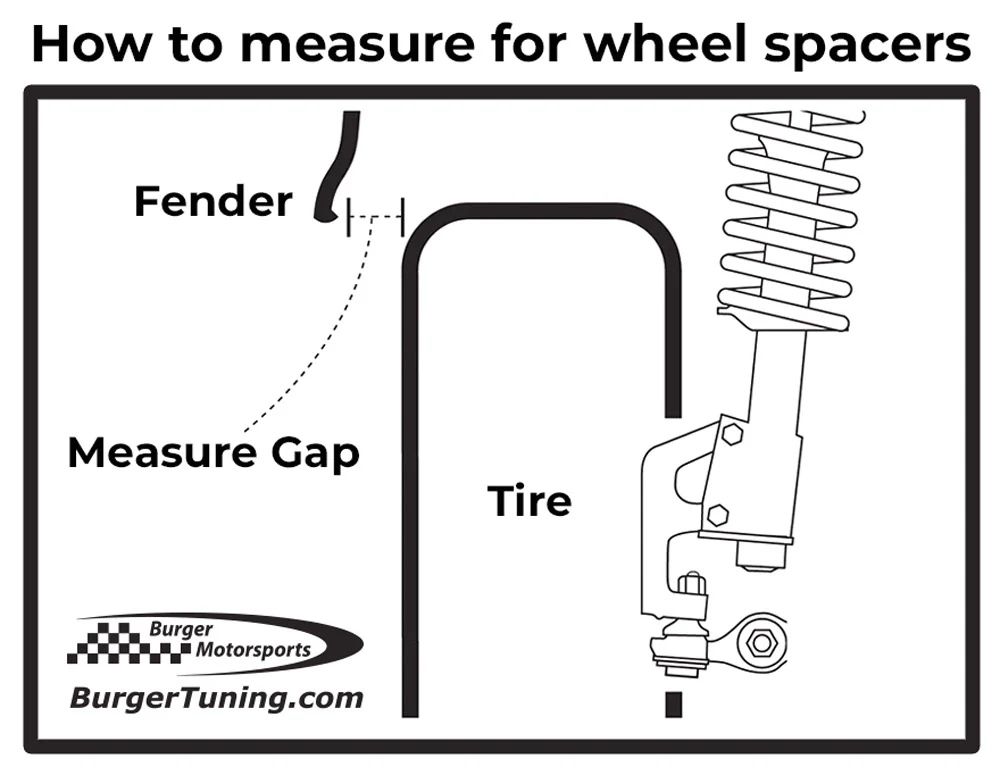

What width wheel spacer should I get?
Most G Chassis BMW vehicles with factory wheels and tire sizes take 10mm to 13mm in the front and 13mm to 15mm in the rear.

The photos and guidelines on this website are for reference only. Your BMW might have different results with the same size spacers due to different wheels, tire sizes, packages, and offsets.

Installation: Simply remove the wheel, place the spacer on the hub and bolt the wheel back up with the supplied longer lug bolts. Download the install guide.

FREE Wheel Pin tool with purchase of 2 pairs of wheel spacers on the same receipt.

To get the free wheel pin with a 2 pair wheel spacer purchase, add 2 pairs of wheel spacers to your cart, go to the link below and add the free wheel pin to the cart. When you hit the checkout button the items will be discounted to FREE!

Click Here for the BMW Wheel Pin Tool ($10.00 Value)

CLICK HERE to check out or new lightweight racing G chassis spacers and lug bolts.

BMW Applications
G chassis BMW only Except for F chassis M5, M8, X2, and X1 (see below)

2 Series 2022+ G42 230i, M240i and 2023+ G87 M2 including Competition
3 Series 2019+ G20/G21 318d, 320d, 320dX, 320i, 320iX, 325i, 330d, 330dX, 330e, 330i, 330iX, M340i, M340iX, including 2021+ G80 M3 including Competition
4 Series 2020+ G22/G23/G26 420i, 420d, 430i, 430d, M440d, M440i, M440i xDrive, i4 eDrive40 and 2021+ G82 M4 including Competition
5 Series 2018-2024 G30/G31 2017-2023 518d, 520d, 520dX, 520i, 525d. 530d, 530dX, 530e, 530eX, 530i, 530iX, 540dX, 540i, 540iX, M550dX, M550iX
5 Series 2024+ G60/G61/G68 (all models)
M5 F90 F91 2018-2024 M5 and M5 Competition. 2025+ M5 Click here.
7 Series 2016+ G11/G12 730d, 730dX, 730i, 740i, 745e, 750dX, 750iX
8 Series 2018+ G14/G15 840dX. 840i, 840iX, M850iX
M8 F91 F92 F93 M8 & M8 Competition

X1 2015-2020 F48
X3 2018+ G01 and X3M and X3M comp F97
X4 2018+ G02
X5 2019+ G05 G18 X5
X6 2019+ G06
X7 2019+ G07
Z4 2019+ G29
I8 2014-2020 I12 Coupe & Roadster

BMW All-Electric
IX 2022+ I20 xDrive40, xDrive50, & M60
I3 2014-2021 I20 i3 & REx
I4 4 Series 2022+ G26 eDrive35, i4 eDrive40, i4 M50
I5 5 Series 2024+ G60 G61 G68 eDrive40, M60 xDrive

F Chassis vehicles please note:
2018+ F90 BMW M5 takes G chassis spacers
2020+ F91 F92 F93 BMW M8 & BMW M8 Competition takes G chassis spacers
2016+ F48 F49 X1 takes G chassis spacers
2017+ F39 X2 BMW takes G chassis spacers
2018+ F98 X4M & X4M Competition takes G chassis spacers
2019+ F95 X5M & X5M Competition takes G chassis spacers
2020+ F96 X6M BMW & X6M Competition takes G chassis spacers

G Chassis BMW Wheel Spacer Specifications
Center Bore: 66.6 mm
Bolt Thread Size: M14 x 1.25
Bolt Seat: Cone Seat / Concentric
Bolt pattern: 5×112 wheel spacers
Wheel Fasteners: Extended 10.9 grade zinc coated lug bolts
Spacer Material: Lightweight Anodized Black 7075-T6 Aluminum
Torque Specifications 105 ft-lbs (142 nm)

What’s included:
(2) Wheel spacers
(10) Extended 10.9 grade lug bolts
(1) Packet of anti-seize

⚠️ Read instructions before installing. DO NOT mix up the included bolts. The bolts are the spacer width longer than the factory bolts. They are different lengths depending on spacer width.

Wheel Spacer Install Video
