BMS Billet Strut Cross Braces for 2020+ Toyota GR Supra

BMS Billet Strut Cross Braces for the 2020+ Toyota GR Supra. Designed and made in the USA from billet aluminum with the BMS logo engraved on the top middle. These strut braces are a solid one-piece design and give

extra stabilization to the chassis you can feel along with an exclusive look under the hood.

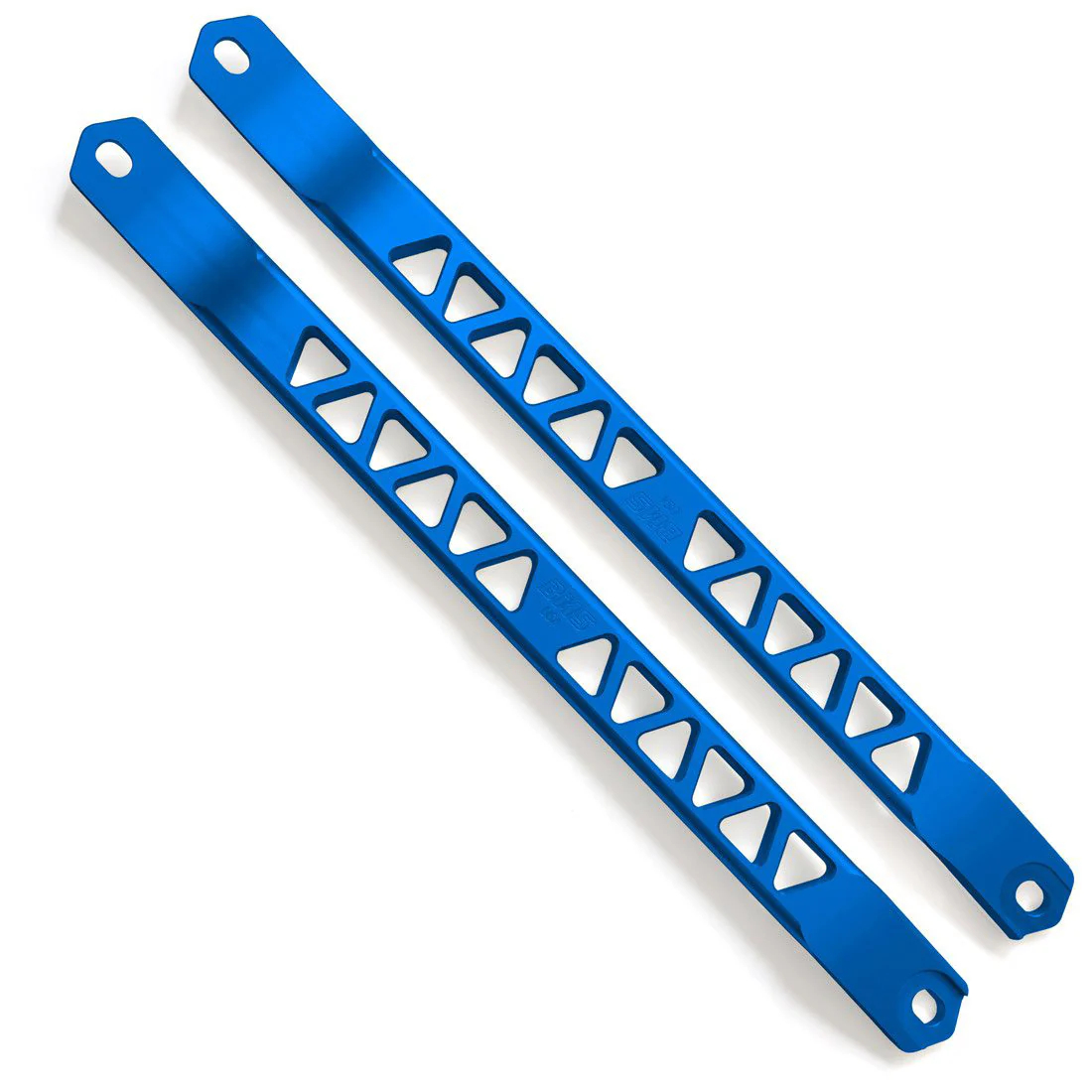

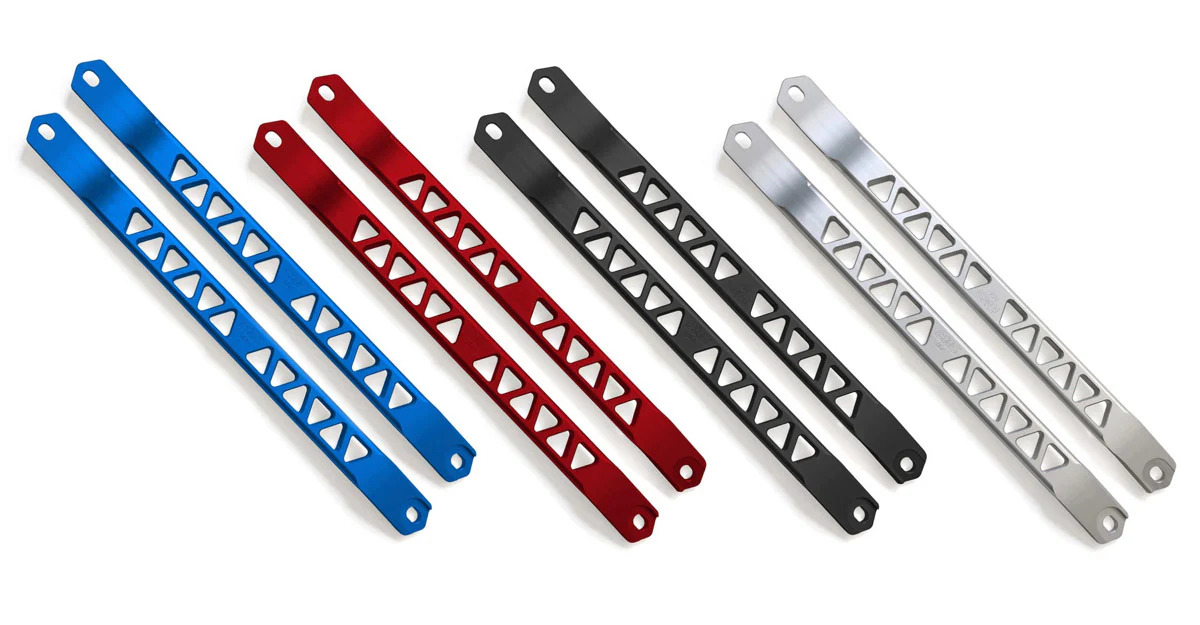

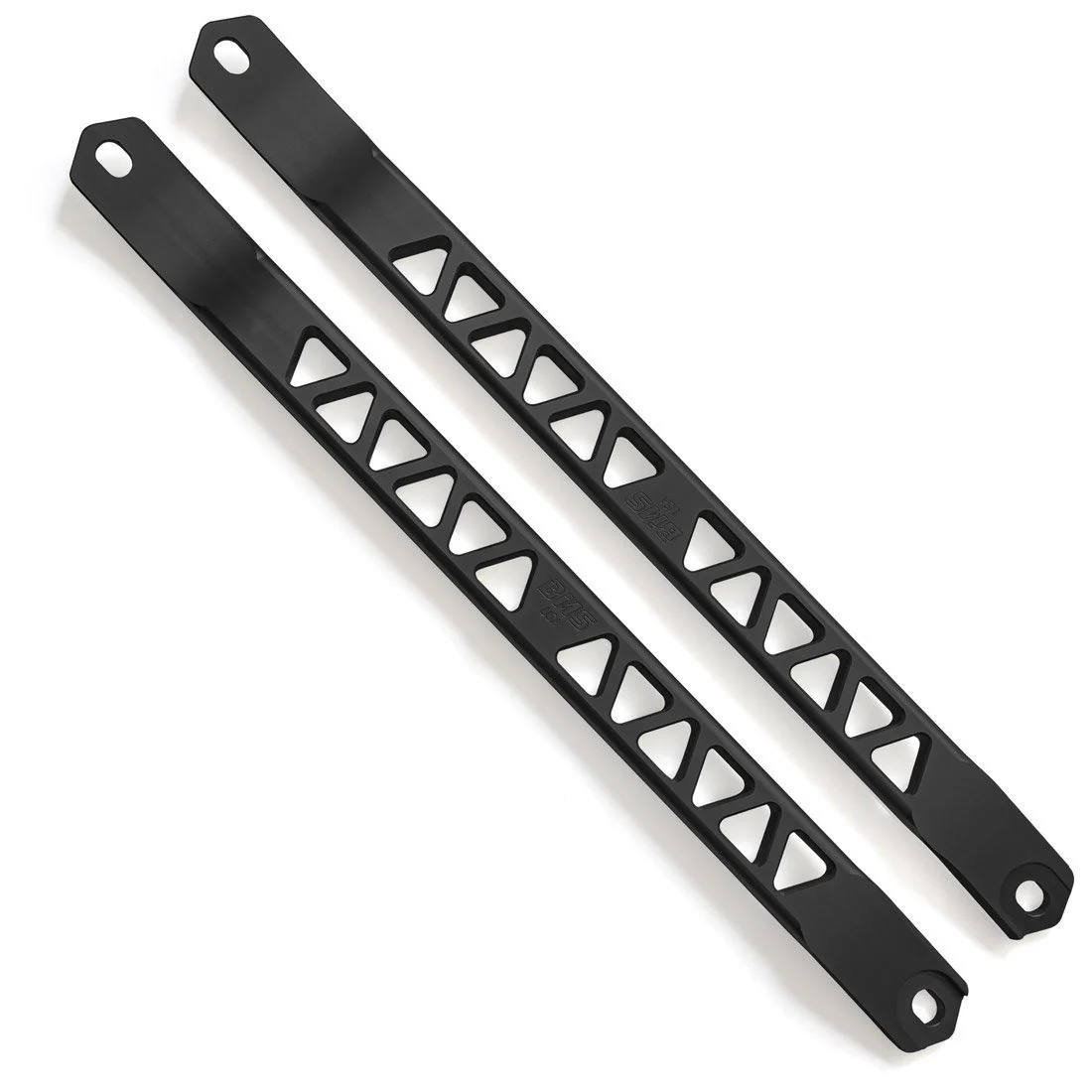

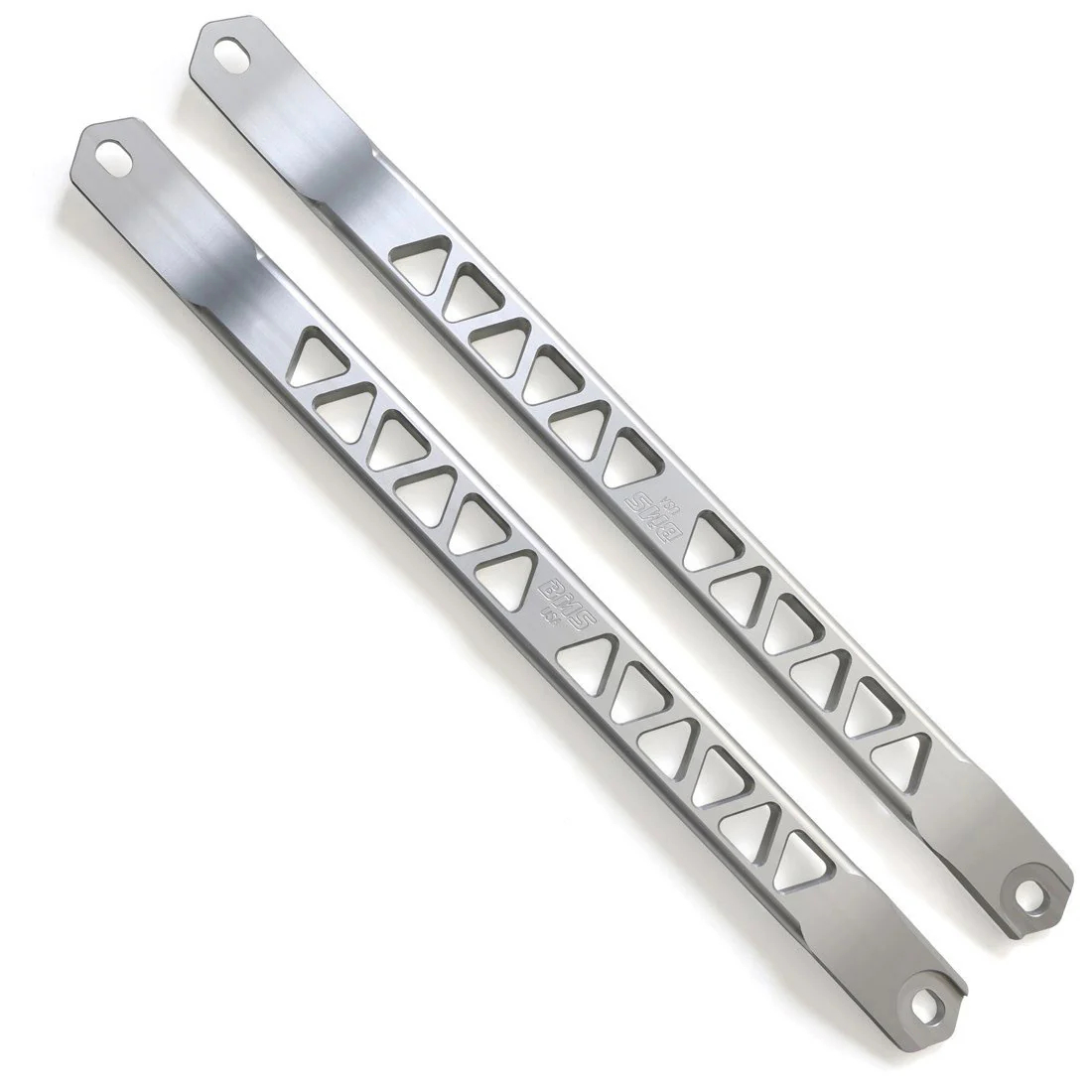

Sold in pairs. Available in Black, Silver, Blue, and Red anodized.

FEATURES & BENEFITS

• The perfect addition to your Supra engine bay
• 1 piece design machined from a solid block of billet aluminum
• Improved chassis rigidity
• Decreased flex during cornering
• Direct bolt-on replacement, no drilling required
• Easy installation
• Made in the USA

Vehicle Fitment

Toyota GR Supra Mk5 B58 3.0L 6 cyl.
• 2020 Mk5 Toyota GR Supra all models (Select: mounting hardware included)
• 2021+ Mk5 Toyota GR Supra all models (Select: factory mounting hardware used)
Vehicles with factory strut braces reuse the factory hardware.

Toyota GR Supra Mk5 B48 2.0L 4 cyl.
• 2020+ Mk5 Toyota GR Supra all models (Select: mounting hardware included)

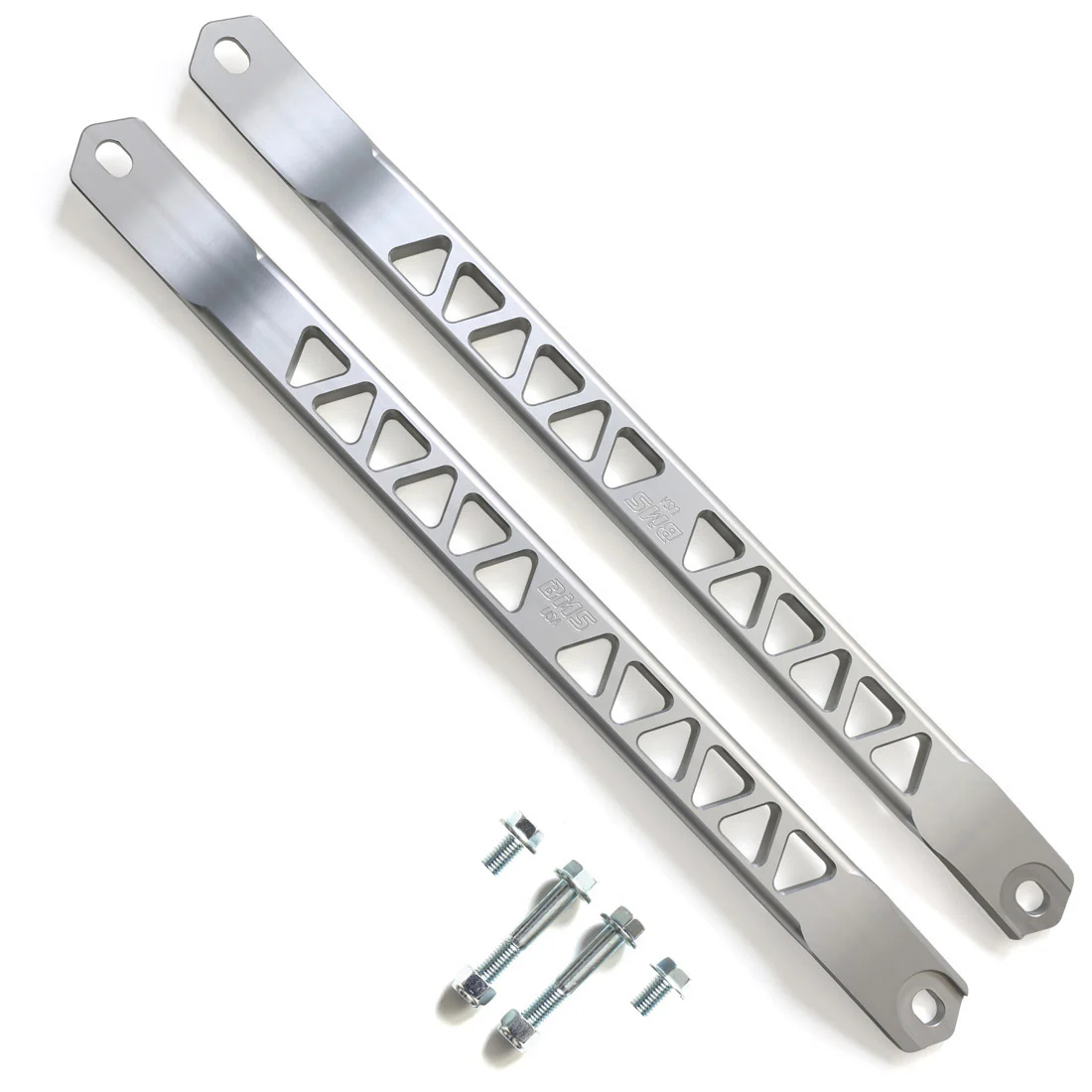

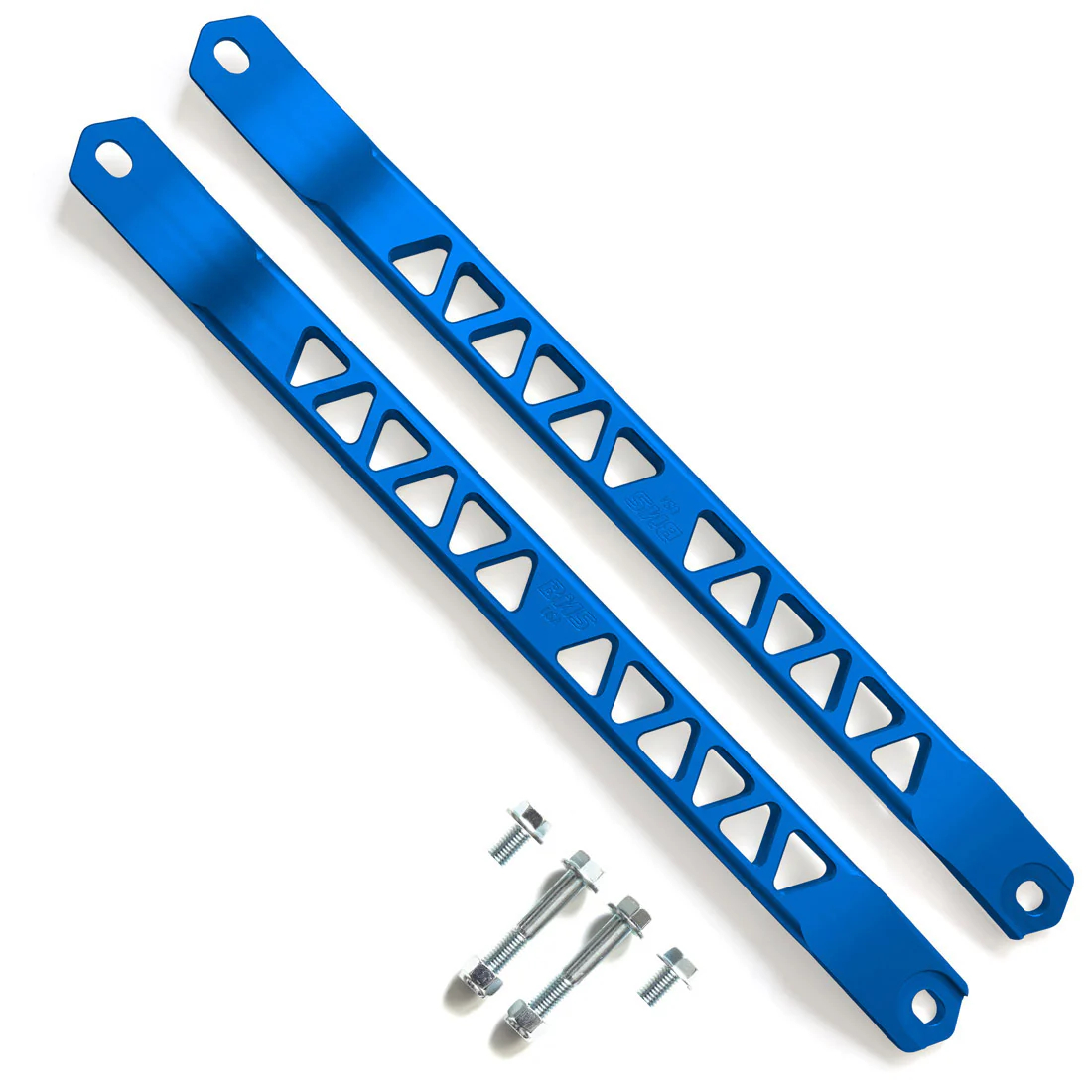

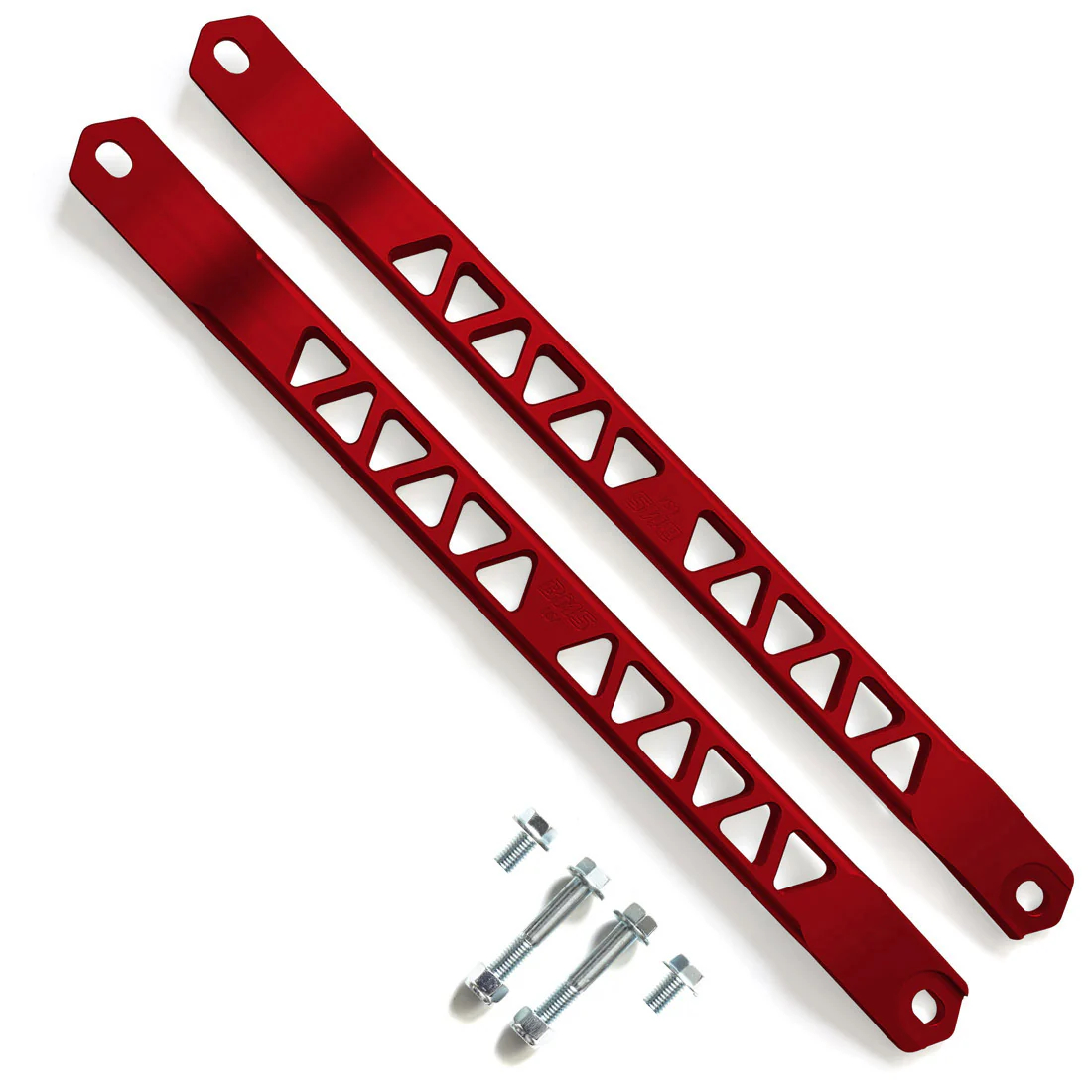

Toyota Supra Kit Includes (without factory hardware)
(2) CNC machined billet aluminum strut braces
(2) Short flange bolts (front) (M10x 1.5 mm Thread, 35mm long)
(2) Long flange bolts (rear) (M8 x 1.25mm thread x 50mm long)
(2) lock nuts (M8 x 1.25mm Thread)

Vehicles with factory strut braces reuse the factory hardware.

🔧 Installation instructions for vehicles with factory strut braces: Unbolt your factory strut braces, and replace with the Burger Motorsports billet strut braces. Replace factory bolts. The BMS logos should be facing outwards.

🔧 Installation instructions for vehicles without factory strut braces: When the BMS strut braces are placed on the car the BMS logos should be facing outwards. Place the longest supplied bolt trough the upper brace bolt hole and through the strut tower all the way through to the front wheel well. Next attache the supplied lock nut to the bolt inside the wheel well and tighten from underneath by the spring. Next thread the shorter supplied bolt through the front brace threaded hole. Repeat on the other side.

Supra Strut Brace Review & Install Video

2020+ Toyota GR Supra with black BMS strut braces installed. 🔥
