B58 BMW Billet Water/Methanol Injection (WMI) Spacer

Plug and play Water/Methanol Injection (WMI) adapter for all B58 BMW motors

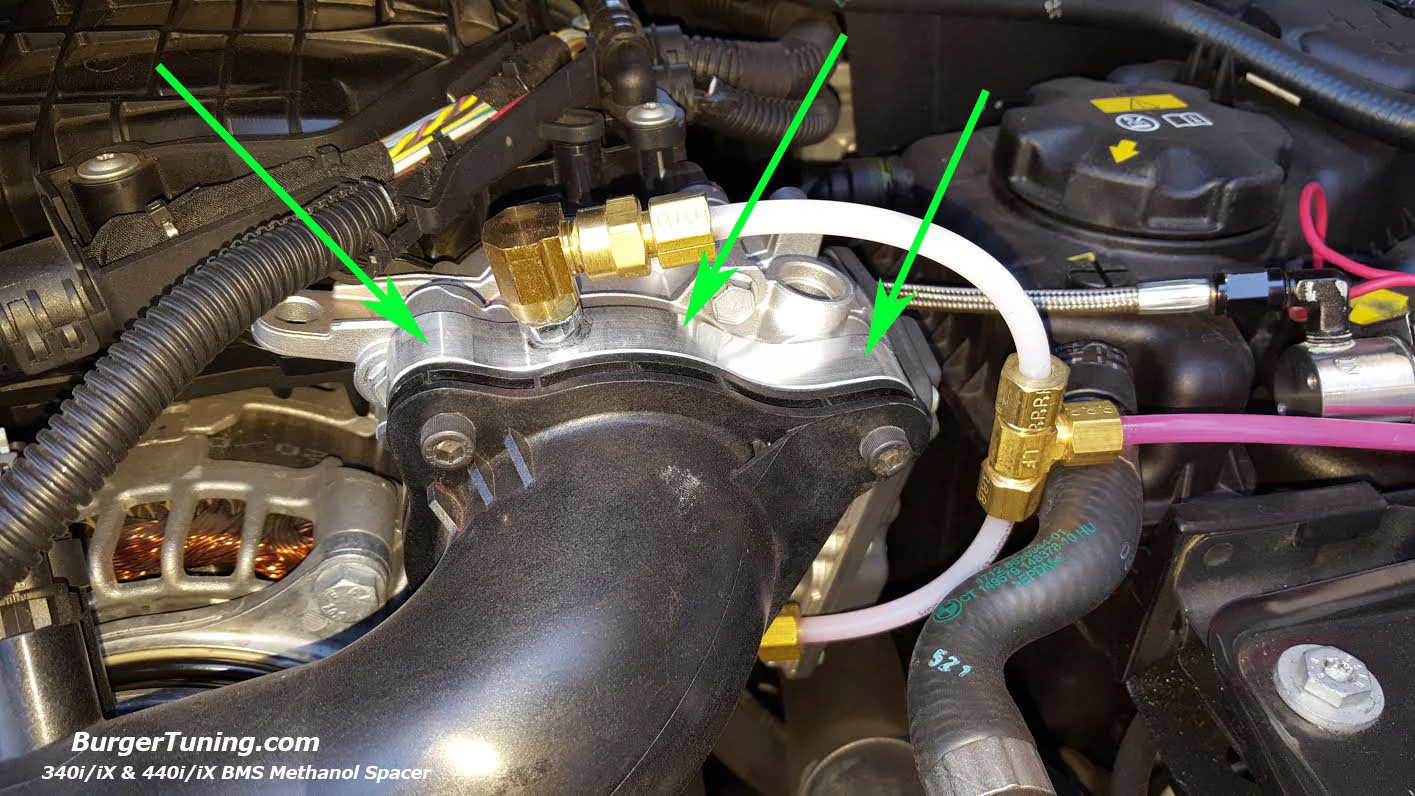

Normally you’d replace the factory charge pipe to install a water/methanol kit but in the case of the B58 engine, the factory charge pipe is very sturdy and difficult to remove. So we’ve designed this plug and play adapter for quick installation and removal of BMS dual nozzle water/meth kits without having to replace the factory charge pipe. Simply unscrew three bolts, insert the CNC machined adapter with integrated o-ring in place, and tighten the included longer length bolts, to allow mounting of two meth nozzles with a perfect seal. Includes dual 1/8″ NPT methanol bungs appropriately machined for a clean spray pattern which is critical for proper atomization with the B58 motor. For most B58 water/methanol applications we suggest dual CM5 nozzles.

F / G chassis BMW Vehicle Fitment
(Gen 1 B58 Engines)

Your B58 powered vehicle not listed? Email us a picture of your throttle body.
BMW 1 Series
• 2016-2019 F20 F21 B58 140i including xDrive

BMW 2 Series
• 2016-2019 F22 F23 B58 240i including xDrive

BMW 3 Series
• 2016-2018 F30 F31 F34 B58 340i including xDrive

BMW 4 Series
• 2016-2019 F32 F33 F36 B58 440i including xDrive

BMW 5 Series
• 2017-2019 G30 G31 Gen 1 B58 540i including xDrive

BMW 6 Series
• G32 Gen 1 B58 640 GT

BMW 7 Series
• Gen 1 B58 740i

BMW X Series
• B58 G01 X3 40i (email picture of throttle body before ordering)
• B58 G02 X4 40i (email picture of throttle body before ordering)

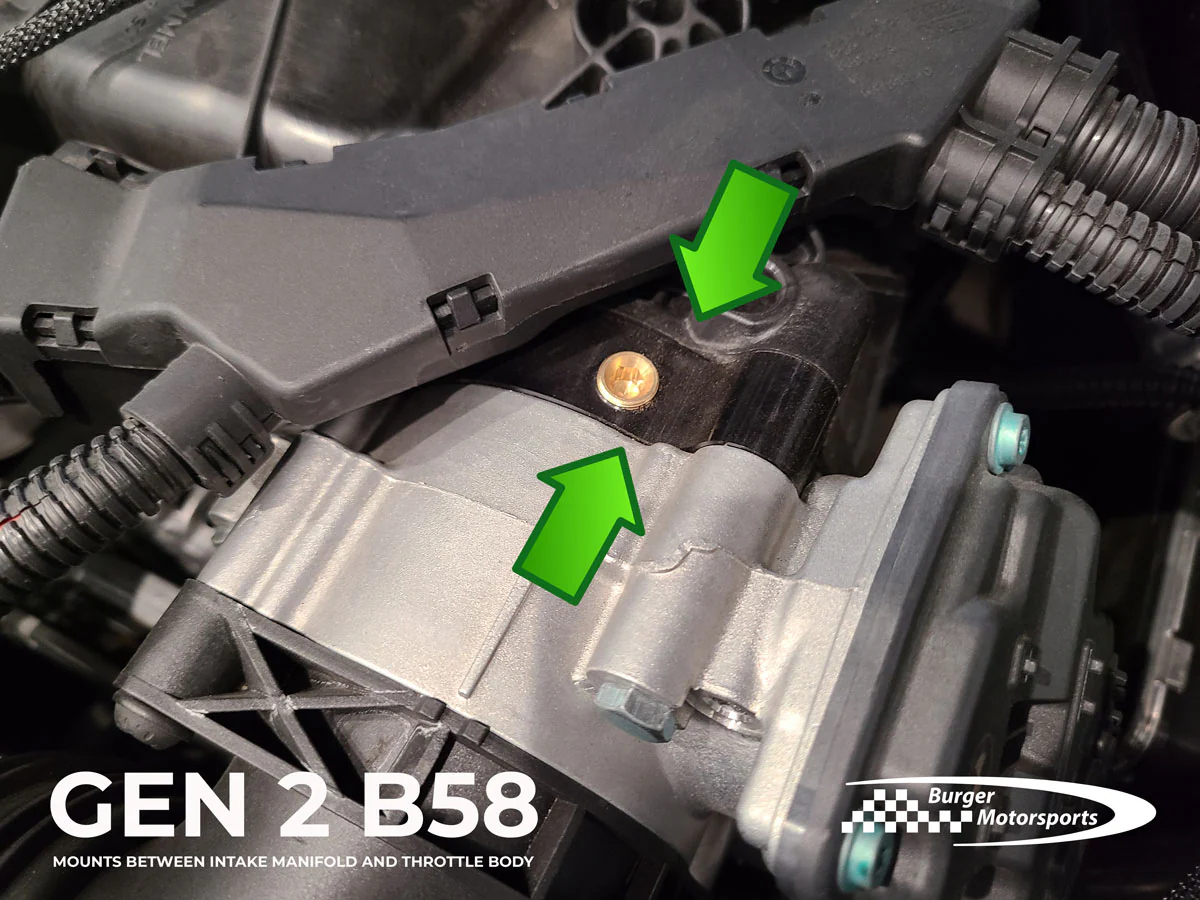

G chassis BMW Vehicle Fitment
(Gen 2 B58 Engines)

BMW 2 Series
• 2022+ G42 M240i including xDrive

BMW 3 Series
• 2020-2023 G20 G21 B58 M340i including xDrive

BMW 4 Series
• 2021+ G22 G23 G26 B58 440i including xDrive

BMW 5 Series
• 2020+ G30 G31 Gen 2 B58 540i including xDrive

Toyota Supra Applications

Supra
• 2020+ GR Supra Mk5 3.0L 6 cyl. (B58 Engine)

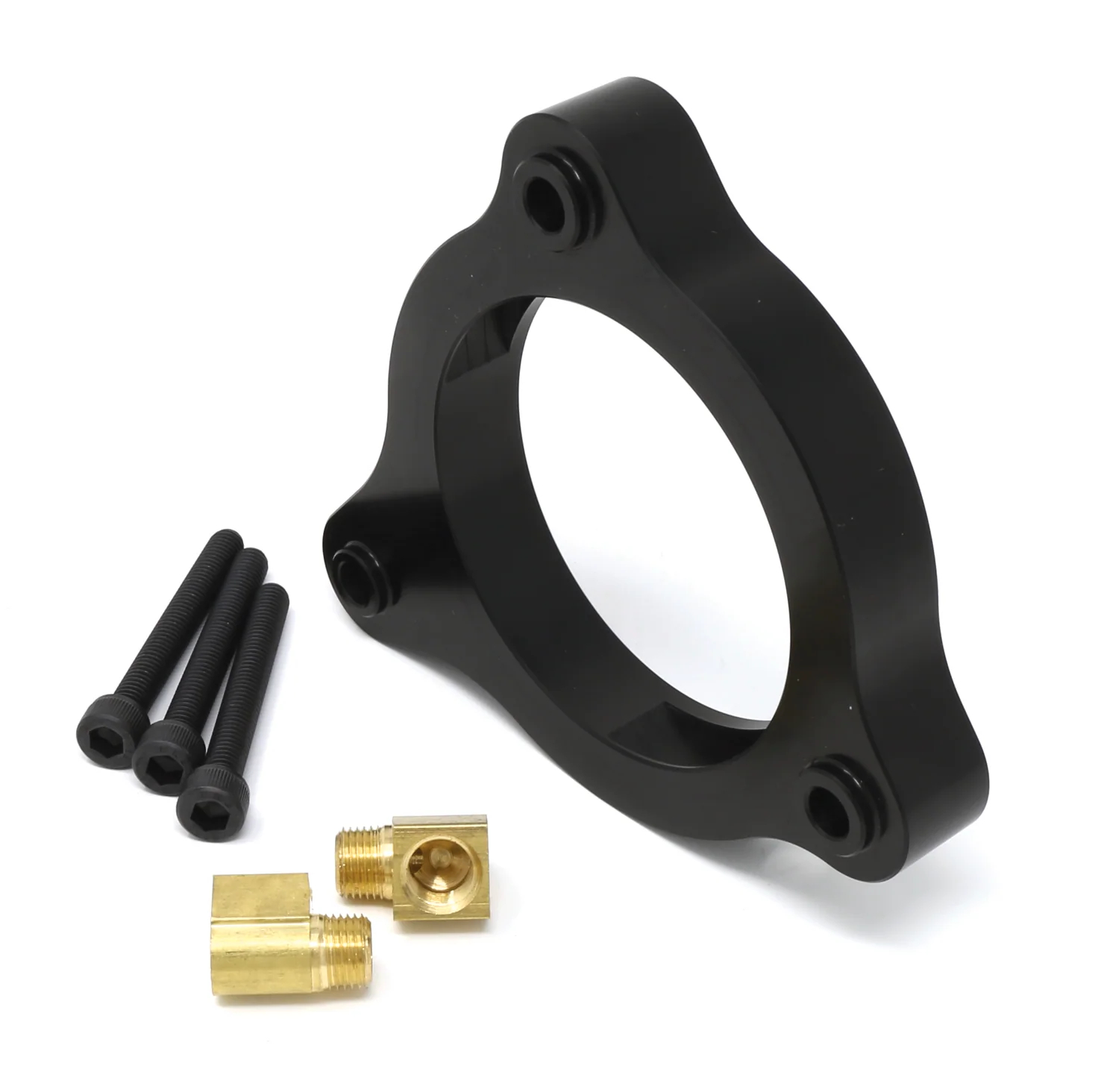

(1) Billet Spacer
(3) M6x1.0x50mm bolts
(2) 1/8 NPT bung plugs
(2) 90º nozzle adapters

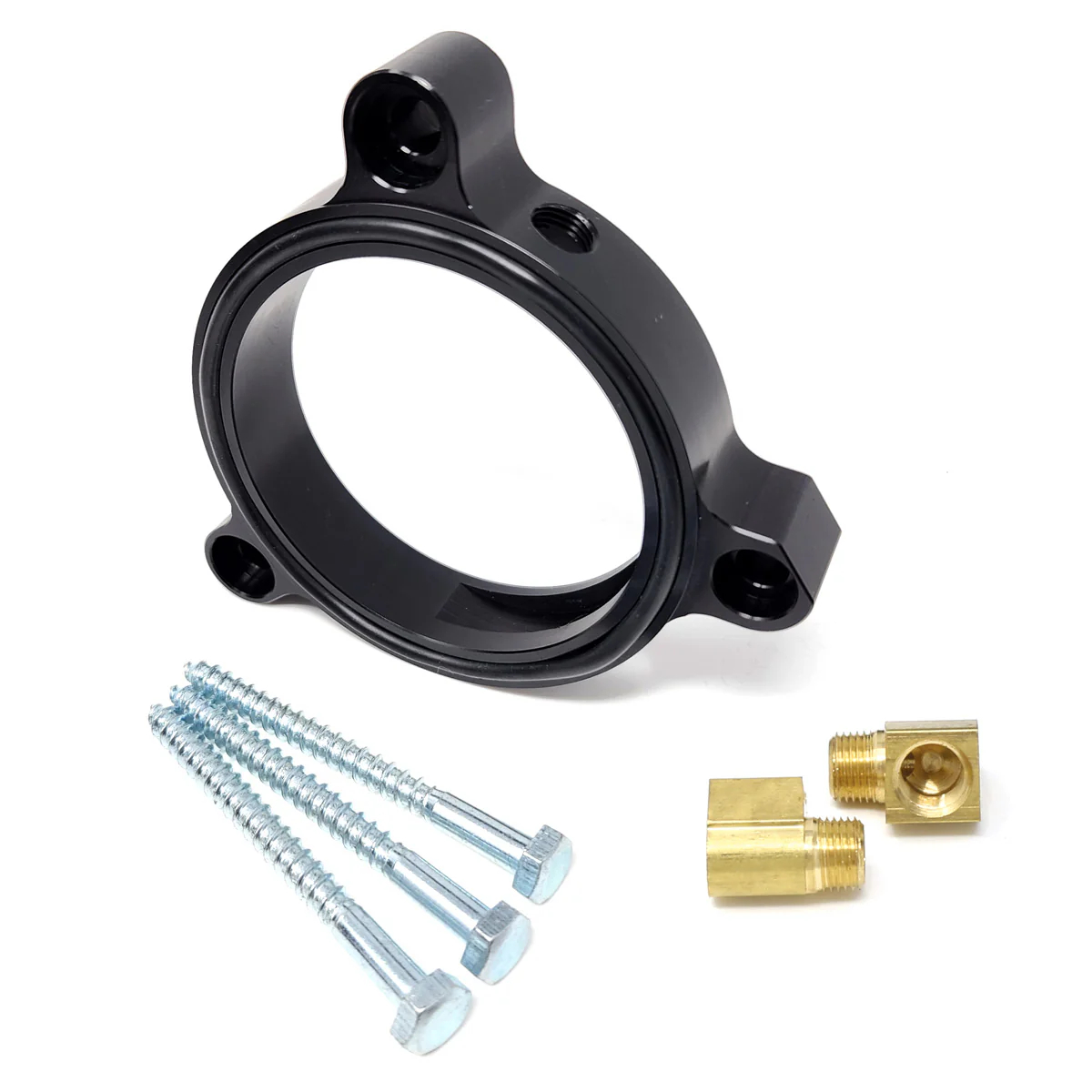

(1) Billet Spacer
(3) 1/4″ x .25″ x 2-1/2″ bolts
(2) 1/8 NPT bung plugs
(2) 90º nozzle adapters
